A Integrated Compressed Air Solution
Model: DMWLV-G Series
Brand: DREAM
Working Pressure: 2~3 [ bar ] 29.0~43.5[ psig ]
Air Capacity （FAD）: 12~133 [ m³/min ] 423.8~4696.8[ cfm ]
Power: 45~400 [ KW ] 61.2~543.8 [ hp ]
Other parameters, please inquiry us.
DMWLV-G series
Low-pressure dry oil-free permanent magnet frequency conversion Screw air compressor
Applying the Germany imported low-voltage host, reaching the ISO 8573-1 CLASS 0 lever certification, this series demonstrates excellent and stable supply of compressed air.
Revolutionizing Efficiency:
The VFD system significantly improves energy efficiency by operating the compressor at the most efficient speed for the current demand. This results in substantial energy savings compared to traditional fixed-speed models.
Greener Footprint:
By reducing electricity consumption, our compressor contributes to lower energy bills and a smaller carbon footprint. This eco-friendly approach aligns with modern sustainability goals and supports your efforts towards green manufacturing.
Enhanced Reliability and Lifespan:
The VFD system reduces mechanical strain on the motor and compressor components, avoiding the stress and wear associated with constant start-stops and running at a single speed. This extends the lifespan of the compressor and reduces maintenance requirements, translating into cost savings and peace of mind for your operations.
Quiet Operation:
The smooth adjustment of motor speed by the VFD system results in reduced noise levels, creating a quieter and more comfortable work environment for your staff.
1. The air compression chamber is completely separated from the oil chamber. The air side adopts the non-wear sealing system of stainless steel spring-loaded metal ring, and the lubricating oil side adopts the non-wear sealing system with copper labyrinth seal.
2. The inner wall of the rotor and compression chamber of the main engine is coated with the industry's first-class super coating (UITRACOAT). It can effectively prevent the softening and falling off of general coatings such as Teflon. It has excellent anti-corrosion and reduces the role of mesh clearance. The gas volume did not decrease significantly during the whole life cycle.
3. The shell compartment of the main engine is cooled by filtered lubricating oil. Efficient cooling, avoiding water cooling caused by scale, thus improving the reliability of operation.
In addition to the newly developed Venturi tube silencer, there are impedance integrated silencers, which can greatly eliminate the noise emitted by the compressor pipeline.
Dream dry screw air compressor water cooler adopts a new type of threaded finned tube shell heat exchanger, compressed air tube, cooling water shell side, tube nest for the new plum flower type copper tube, compared with the conventional water heat exchanger, the advantages are as follows:
1. Compressed air pipeline, relative to the outer fin tube pressure capacity;
2.Cooling water shell process, compared with the process selection in the tube, cooling water through multiple groups of baffling parts, the degree of turbulence is increased, the probability of dirt formation on the attached pipe wall is reduced, the equipment cleaning cycle is extended, and the maintenance cost of users is reduced;
3.The gas runs through the tube and the fins extend axially in the tube. Relative to the outer wings, the pressure drop generated by the unit windward area is lower than that of the outer wings, the use is safe and reliable, and the fins are not easy to fall off.
4.The installation of the heat exchanger is simple, the same as that of the conventional shell and tube heat exchanger;
5. Stainless steel plate is used on the side of the pipe to prevent corrosion and rust of the cooler due to high temperature and high pressure, affecting the life of the compressor host and air quality;
6.Tube nest can be disassembled independently, convenient maintenance;
7.Compressed air pipeline, water shell process, reduce the noise generated by compressed air.
Dream dry screw air compressor adopts the latest centrifugal fan, cooling air volume is large, low noise, wind pressure is stable and uniform, so that the cooling area of the cooler is fully utilized, and greatly reduce the noise of the air compressor 6-8dB(A), and also a quiet environment for customers.

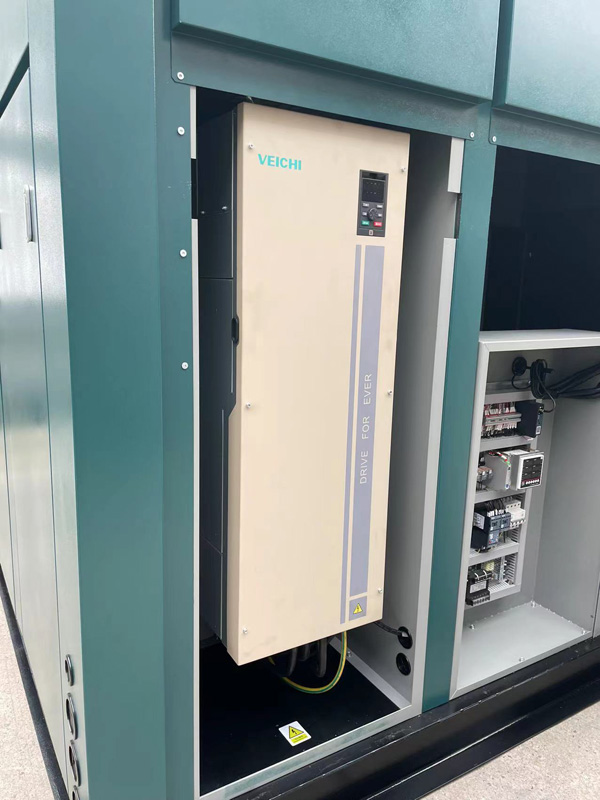

Large color LCD touch screen, with good man-machine interface; Customized vector inverter, perfect match with the motor; Special program, fully monitor the parameters of the machine, automatically control the state of the machine, without special care; Independent air duct design, suitable for various working conditions.
Efficient air intake valve, more stable and reliable operation, avoiding the regular replacement of pneumatic components, reducing unnecessary downtime and maintenance costs.
Multiple noise reduction design, according to the noise calculation, the internal paste special flame retardant silencer cotton, reduce the noise of the unit, provide a quieter environment.
Independent air intake to ensure that the intake air temperature is equal to the ambient temperature. The selection of large margin air filter, better filtering effect, lower intake pressure loss, energy saving and high efficiency. More convenient maintenance and replacement.
